柴油車煙度計

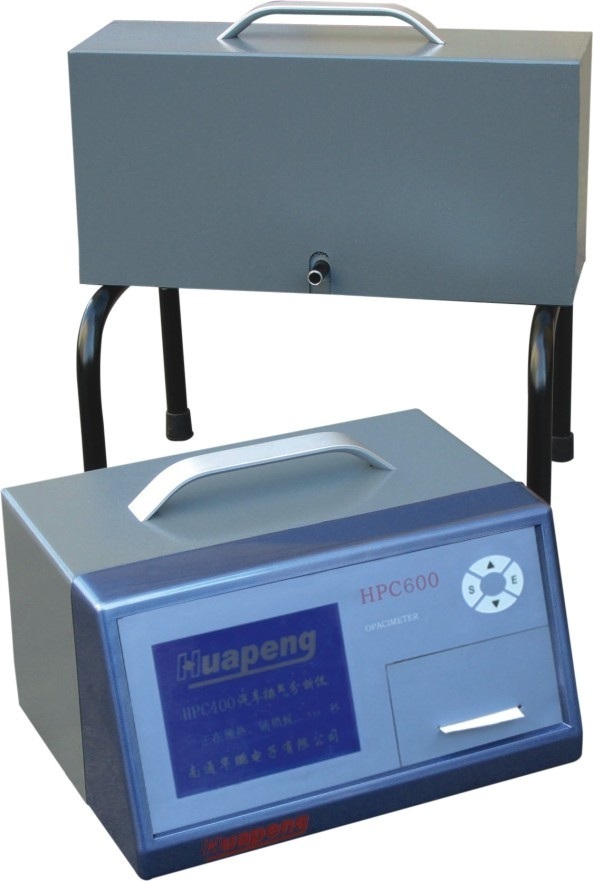

HPC600不透光煙度計

主要功能特點：

分體式結構設計，操作更方便，數據更精確；
大屏幕液晶顯示，全中文菜單操作；
采用分流式取樣技術、柴油車加速、減速和穩速時均可測量煙度；
數據自動線性化處理，可顯示不透光度N、光吸收系數K和對應濾紙式煙度值Sf；
采用“空氣幕”技術保護光學系統免受污染；
檢測室自動恒溫控制，可防冷凝而影響測試精度；
附自動時間顯示；
配內置全自動打印機或藍牙、RS232接口；

可車牌號輸入及500組數據存貯，備查功能，時鐘顯示
配轉速、油溫測試通道；
符合ISO116614、GB3847-2018、GB36886-2018、JJG976-2010的要求。

主要技術參數 :

測量范圍不透光度N: 0～100%(相當煙度值0～10FSN)

光吸收系數K:0～16.06m^-1

轉速：0-9990rpm 油溫: 0-150℃

示值誤差 ≤±2%(測量值)

穩定性自動校零，量矩漂移≤±1%/4h

重復性重復誤差≤±1%

分辨率 N為0.1%, K為0.01m^-1 ,RPM為10rpm, OIL TEMP為0.1℃

輸出方式液晶顯示，可附打印機打印煙濃度(暗度最大值)，即時曲線、測試時間、

日期等?？筛浇涌谂c計算機聯網。

測量室溫度 70℃(自動恒溫)，當溫度誤差≥±10%時，溫度及錯誤指示燈亮

環境條件溫度-5～50℃，相對濕度≤90%

電源 AC100-240V 50/60Hz或DC12V（選加電源逆變器）消耗功率150VA

外形尺寸控制單元 240mm(長)×310mm(寬)×170mm(高)

(含支架）測量單元 130mm(長)×400mm(寬)×390mm(高)

重量控制單元 4kg

測量單元 5kg

Main Features:

◆Separated structural design, operation more convenient and more accurate data
◆Large-screen LCD display, full English menu;
◆Adopted a triage-type sampling technique, diesel vehicle acceleration, deceleration, and steady speed can be measured when the smoke;
◆Linear automatic data processing, can be displayed opacity degrees N, light absorption coefficient K and the corresponding value of filter paper-type smoke Sf
◆Use of "air curtain" technology to protect the optical system from contamination;
◆Automatic detection of room temperature control, anti-condensation can affect the test accuracy;
◆Automatically attached to the time display;
◆Automatic with built-in printer (or Bluetooth / RS232) interface or analog output interface);

◆License plate number input and 500 groups of data storage, backup function, clock display
◆With rotational speed, oil temperature test channel;
◆In line with ISO116614 、GB3847-2018 and GB36886-2018 technical requirements.

Main technical parameters:

Test Scope：No light transmission N:0～100% (equivalent to smoke value 0~10FSN)

Light absorption coefficient K:0～16.06 m^-1

RPM：0～9990rpm OIL TEMP: 0～150℃

Indication error: ≤±2% ( measured value)

Stability:moment drift≤±1%/4H

Repeatability ≤±1%

Resolution: N:0.1%, K:0.01m^-1 ,RPM:10rpm, OIL TEMP:0.1℃

Output mode: liquid crystal display, can be attached printer ( dark smoke concentration degree maximum ), real-time curve, test time, date. Can interface with computer networking

The measurement chamber temperature:

70 ℃ (automatic), when the temperature error of ≥± 10%, temperature and error indicator light

And-use temperature: -5~50°C, Relative humidity: ≤90%

Power: AC100~240V 50/60Hz or DC12V, Power consumption: 150VA

Dimensions: control unit: 240(L)×310(W)×170 (H)mm

( including bracket) measuring unit: 130(L)×400(W)×390(H)mm

Control unit: 4kg

Measuring unit: 5kg
