主要功能特點：

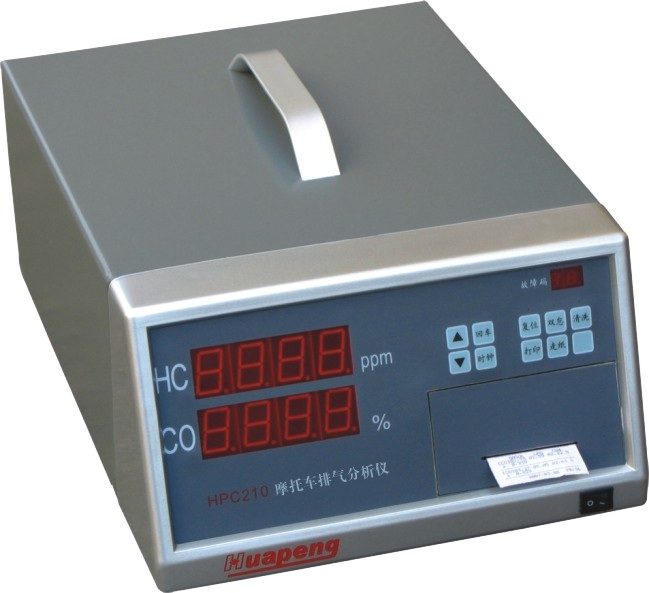

用于測量摩托車排放廢氣中的HC及CO氣體濃度，采用國外技術，進口關鍵零部件組裝而成。具有

高亮度數碼顯示，自動校零，自動數據線性化處理，氣路阻塞時自動報警，故障時自動診斷所在單元，打印

測試之日期、時間功能，配內置打印機（或藍牙、RS232、模擬接口），可進行自由怠速和雙怠速測量，

具有操作方便，測量數據準確，工作穩定可靠等特點。

主要技術參數：
測量范圍      HC：0～20000×10-6（ppm）vol
CO:0～10×10-2(%)vol
示值誤差      HC±12×10-6（ppm）vol(絕對誤差）或±5%（相對誤差）
CO±0.06×10-2(%)vol  (絕對誤差）或±5%（相對誤差）
穩 定 性       自動校零，量矩漂移≤±3%
重 復 性      重復誤差≤±2%
分 辨 率      HC：10×10-6（ppm）vol CO: 0.01×10-2(%)vol
響應時間      95%響應不大于10秒
預熱時間      8min（可預熱3min應急檢測）
輸出方式 數字直讀顯示，可附打印機打印氣體名稱，濃度最大值、平均值、最小值，測試時間、日期等?？筛浇涌谂c計算機聯網
環境條件      溫度-5～50℃，相對濕度≤90%
電      源       AC100-240V 50/60Hz 或DC12V（選加電源逆變器）消耗功率40VA
外形尺寸      420mm(長)×310mm(寬)×170mm(高)
重      量      約9kg

Main Features:

Motorcycles used to measure emissions of HC and CO gas concentrations, using advanced foreign

technology, import the key components assembled. With a high-brightness digital display, automatic

zero, linear automatic data processing, auto-alarm when the gas line blocking, fault diagnosis where

the unit automatically and print testing date, time functions, with built-in printer (or the analog output

interface or RS -232A digital serial communication interface), can be freely idling and dual idling

measure, with convenient operation, accurate measurement data, work stable and reliable characteristics.

Main technical parameters:

Measuring range:HC: 0~20000×10^-6(ppm)vol

CO: 0~10×10^-2(%)vol )

Indicating error: HC±12×10^-6 (ppm)vol( absolute error ) or±5% ( relative error )

CO±0.06×10^-2(%)vol ( absolute error ) or±5% ( relative error )

Stability:moment drift≤±3%

Repeatability ≤±2%

Resolution: HC:1×10^-6(ppm)vol

CO: 0.01×10^-2(%)vol

Response time: 95% response is not more than 10 seconds

Preheating time: 8min ( preheating 3min emergency detection )

Output mode: digital direct reading, gases can be attached printer name, the maximum concentration, average value,

minimum value, test time, date. Can interface with computer networking

And-use temperature: -5~50°C, Relative humidity: ≤90%

Power: AC100-240V 50/60Hz or DC12V( Add power inverter)

Power consumption: 40VA

Dimension: 420 (L )×310(W)×170(H)mm

Weight: 9kg
